Introduction
In recent years, the demand for sustainable and eco-friendly energy sources has grown exponentially. Among these, charcoal stands out as a versatile product, widely used for cooking, heating, metallurgy, and even soil improvement. However, the traditional methods of producing charcoal, such as pit or kiln carbonization, are inefficient, labor-intensive, and environmentally detrimental. To overcome these challenges, industries are increasingly turning to large-scale continuous furnaces integrated within charcoal production plants.
These advanced systems allow for high-efficiency biomass conversion, produce consistent-quality charcoal, and generate useful by-products like biochar. This article provides a comprehensive exploration of large-scale continuous carbonization furnaces and charcoal production plant, detailing their working principles, components, advantages, applications, and industrial relevance.
Understanding Continuous Carbonization Furnaces
What Is a Continuous Carbonization Furnace?

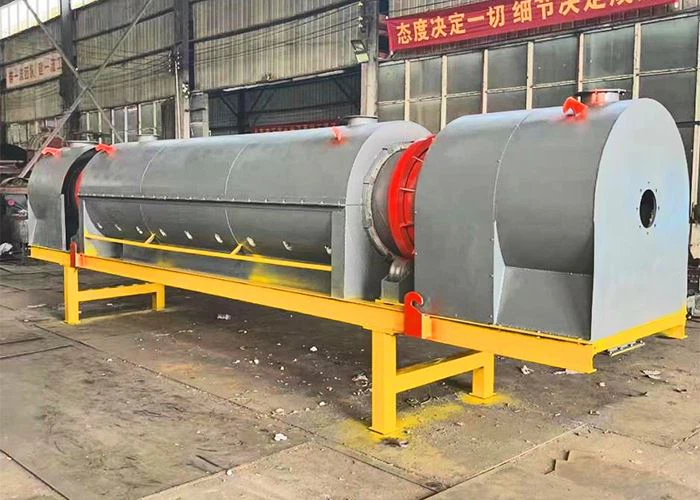

A continuous carbonization furnace is an industrial device designed to convert biomass into charcoal via pyrolysis, a thermal decomposition process conducted in a low-oxygen environment. Unlike traditional batch carbonization methods, continuous furnaces operate without interruption, allowing raw biomass to be fed continuously while finished charcoal is simultaneously discharged.
This uninterrupted operation leads to several advantages:
- Increased production efficiency: Continuous processing maximizes throughput.
- Consistent product quality: Uniform heat distribution ensures uniform carbonization.
- Energy savings: Recovered gases generated during pyrolysis can be used to fuel the furnace.
- Environmental compliance: Advanced furnaces minimize harmful emissions.
Continuous carbonization furnaces are widely used in large-scale operations where raw materials like wood chips, rice husks, coconut shells, and palm kernel shells are abundant.
How Does a Continuous Carbonization Furnace Work?
The working principle of a continuous carbonization furnace can be broken down into several stages:
- Feeding System
Biomass materials are fed into the furnace using a conveyor or hopper. The feeding system ensures a steady and regulated input to maintain uniform carbonization. - Pyrolysis Chamber
The biomass undergoes thermal decomposition in the pyrolysis chamber at temperatures between 400°C to 700°C. The low oxygen environment prevents combustion while allowing volatile gases to escape. - Gas Recovery and Combustion
The volatile gases released during pyrolysis can be captured and combusted in a secondary chamber. This provides additional energy to sustain the carbonization process and improves overall furnace efficiency. - Charcoal Discharge
Fully carbonized biomass is continuously removed from the furnace. Cooling systems are typically employed to prevent spontaneous combustion and prepare the charcoal for further processing. - Emission Control
Modern furnaces incorporate filters and scrubbers to reduce smoke, dust, and other pollutants, ensuring compliance with environmental regulations.
Components of a Charcoal Production Plant
A charcoal production plant is a comprehensive system that integrates multiple processes to transform raw biomass into finished charcoal products. When combined with a continuous carbonization furnace, it achieves high efficiency and output quality.
1. Material Preparation
Before entering the furnace, raw biomass must be processed to suitable sizes and moisture content:
- Shredding and Chipping: Large biomass pieces are broken down using shredders.
- Drying: Moisture content is reduced, typically to below 20%, using rotary dryers or sun drying. Proper drying is crucial to improve carbonization efficiency.
2. Continuous Carbonization Furnace
This is the core component, as discussed earlier. It ensures continuous, high-quality charcoal production.
3. Cooling System
Charcoal exiting the furnace is extremely hot and may ignite spontaneously if left untreated. Cooling systems, often using water spray or air cooling mechanisms, bring the temperature down safely.
4. Crushing and Sieving
Depending on the market requirements, charcoal may be crushed to uniform sizes. Sieving ensures consistent particle size, which is important for packaging and downstream applications.
5. Briquetting or Packaging
Finished charcoal can be processed into:
- Charcoal Briquettes: Compressed charcoal shaped into uniform blocks, ideal for barbecue, industrial, and domestic use.
- Loose Charcoal: For specific industrial applications or export markets. Packaging is then done in bags or containers.
Advantages of Large-Scale Continuous Carbonization
- High Efficiency
Continuous furnaces drastically reduce processing time compared to batch kilns. Throughput can range from several tons per day to hundreds of tons per day in industrial-scale plants. - Uniform Charcoal Quality
Automated temperature control ensures consistent carbonization throughout the biomass feed. - Cost-Effectiveness
Reduced labor requirements, energy efficiency, and minimal waste make large-scale plants economically viable. - Environmental Compliance
Equipped with gas recovery and emission control systems, these plants meet strict environmental regulations, reducing smoke, particulate matter, and greenhouse gas emissions. - By-Products Utilization
Pyrolysis gases and biochar can be used for energy generation, soil amendment, and industrial applications, adding value to the production process.
Types of Biomass Suitable for Carbonization
Large-scale continuous carbonization furnaces can process a variety of biomass materials, including:
- Wood Chips and Logs: Commonly used in industrial charcoal production.
- Coconut Shells: High-density shells yield long-burning, high-quality charcoal.
- Palm Kernel Shells: Often used in tropical regions; high calorific value.
- Rice Husks and Straw: Agricultural residues converted efficiently with modern furnaces.
- Other Agro-Wastes: Sawdust, bamboo, and corn cobs can also be utilized.
The choice of feedstock affects the quality, calorific value, and structural properties of the resulting charcoal.
Applications of Charcoal and By-Products
1. Fuel and Energy
Charcoal serves as an efficient fuel source for:
- Domestic cooking and heating
- Industrial furnaces and metallurgy
- Barbecue and hospitality sectors
2. Soil Improvement
Biochar, a by-product of the carbonization process, is used to enhance soil fertility, improve water retention, and increase crop yields. Its porous structure helps retain nutrients and water.
3. Environmental Remediation
Activated charcoal is widely used in:
- Water purification
- Air filtration
- Removal of heavy metals and pollutants
4. Industrial Applications
Charcoal is a reducing agent in metal smelting, chemical production, and other industrial processes.
Installation and Operation Considerations
When setting up a large-scale charcoal production plant with continuous carbonization furnaces, several factors must be considered:
- Site Selection: Adequate space, access to raw materials, and transportation facilities.
- Feedstock Availability: Consistent supply of biomass ensures continuous operation.
- Energy Supply: Power for auxiliary systems, fans, and conveyors.
- Skilled Workforce: Operators trained in handling furnaces, controlling temperatures, and maintaining equipment.
- Safety Measures: Proper ventilation, fire prevention, and emergency protocols.
Industry Examples and Manufacturers
Leading suppliers of continuous carbonization furnaces and integrated charcoal production lines include:
- Sunrise Charcoal Machinery: Offers continuous carbonization furnaces and complete production plants capable of handling various feedstocks. Sunrise Charpro Continuous Carbonization Furnace
- Other Industry Leaders: Companies provide modular and scalable plants with automated controls, cooling systems, and emission management, suitable for both small and large-scale operations.
Economic and Environmental Benefits
- Revenue Generation
High-efficiency plants enable consistent charcoal supply for domestic and export markets, generating substantial revenue. - Waste Utilization
Agricultural and forestry residues are converted into valuable products, minimizing environmental impact. - Reduced Emissions
Modern furnaces significantly cut down on greenhouse gases compared to traditional methods. - Energy Independence
Utilizing biomass and pyrolysis gases reduces reliance on fossil fuels.
Challenges and Solutions
Challenges
- Initial capital investment is high for industrial-scale plants.
- Continuous monitoring and maintenance are required to prevent operational issues.
- Feedstock supply can be inconsistent in certain regions.
Solutions
- Financing and Government Support: Grants and subsidies for renewable energy projects.
- Automation: Reduces labor costs and enhances process reliability.
- Feedstock Planning: Establish supply agreements with local farms or plantations to ensure continuous operation.
Conclusion
Large-scale continuous carbonization furnaces, integrated into charcoal production plants, represent the future of sustainable biomass conversion. They provide high efficiency, consistent quality, and multiple environmental and economic benefits. By leveraging these advanced systems, industries can transform agricultural and forestry residues into high-value charcoal and biochar, meeting the growing demand for clean energy and sustainable products worldwide.
The combination of continuous operation, automation, and environmental compliance makes these systems indispensable for modern charcoal production. As technology advances, continuous carbonization furnaces will continue to play a crucial role in sustainable energy, waste management, and environmental conservation.
